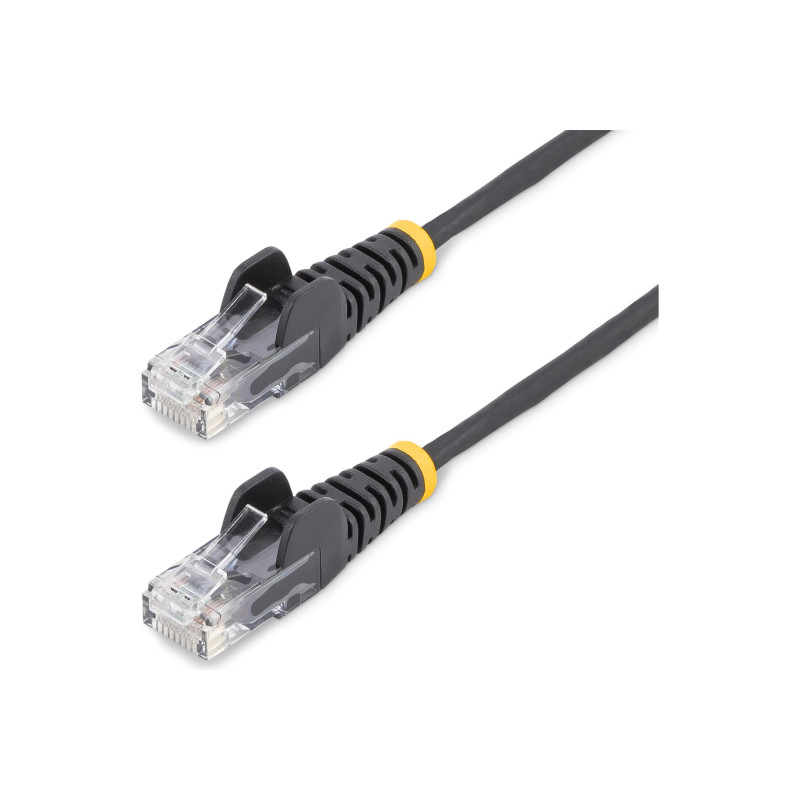

STARTECH.COM 25CM BLACK SLIM CAT6 ETHERNET CABLE, SNAGLESS, 28AWG, LSZH, LTW
$0.00
Tax included
StarTech.com - Patch cable - RJ-45 (M) to RJ-45 (M) - 25 cm - 3.6 mm - UTP - CAT 5/5e/6 - IEEE 802.3bt - halogen-free, snagless, straight - black
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
StarTech.com - Patch cable - RJ-45 (M) to RJ-45 (M) - 25 cm - 3.6 mm - UTP - CAT 5/5e/6 - IEEE 802.3bt - halogen-free, snagless, straight - black
Specifications
| Type | Patch cable - CAT 5/5e/6 - IEEE 802.3bt |
|---|---|
| Colour | Black |
| Diameter | 3.6 mm |
| Features | Halogen-free, snagless, straight, Slim, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 100W PoE++ support |
| Connector | RJ-45 - male |
| Technology | Unshielded twisted pair (UTP) |
| Cable Length | 25 cm |
| Wiring Scheme | T568B |
| Wires per Cable | 8 wires |
| Product Description | Startech patch cable - 25 cm - black |
| Manufacturer Warranty | Limited lifetime warranty |
| Connector (Second End) | RJ-45 - male |
Connectivity
| Connector | RJ-45 - male |
|---|---|
| Connector (Second End) | RJ-45 - male |
Dimensions & Weight (Shipping)
| Shipping Width | 17 cm |
|---|---|
| Shipping Depth | 12 cm |
| Shipping Height | 1.5 cm |
| Shipping Weight | 25.5 g |
Environmental Parameters
| Min Operating Temperature | 10 C |
|---|---|
| Max Operating Temperature | 60 C |
General
| Network Cable Type | Patch cable - CAT 5/5e/6 - IEEE 802.3bt |
|---|---|
| Technology | Unshielded twisted pair (UTP) |
| Wiring Scheme | T568B |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 28 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Halogen-free, snagless, straight, Slim, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 100W PoE++ support |
| Cable Length | 25 cm |
| Diameter | 3.6 mm |
| Colour | Black |
Manufacturer Warranty
| Service & Support | Limited lifetime warranty |
|---|
Miscellaneous
| Compliant Standards | RoHS, WEEE, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001 - up to 250 MHz |
|---|
