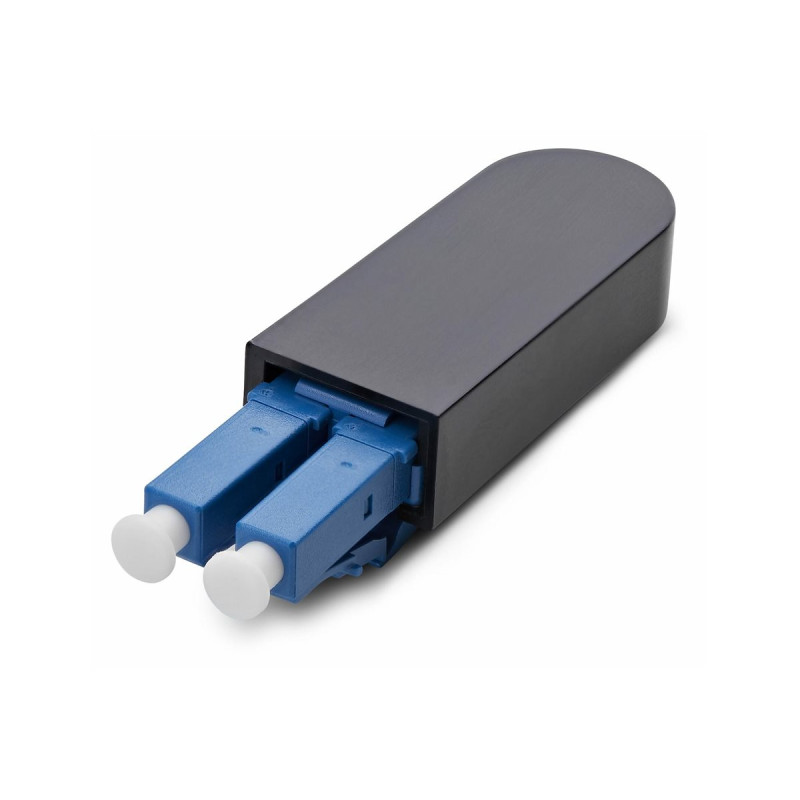

STARTECH.COM LC LOOPBACK PLUG, SINGLE MODE LC FIBER LOOPBACK ADAPTER, 0DB, 2 YR
$0.00
Tax included
Startech - Loopback adapter - TAA Compliant - LC/UPC single-mode (M) - fibre optic - duplex - 9 / 125 micron - OS1/OS2 - blue
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Startech - Loopback adapter - TAA Compliant - LC/UPC single-mode (M) - fibre optic - duplex - 9 / 125 micron - OS1/OS2 - blue
Specifications
| Type | Loopback adapter - OS1/OS2 |
|---|---|
| Colour | Blue |
| Features | < 0.3 dB insertion loss, > 50 dB return loss, 1000 mating cycles, ABS shell, dust cap, ceramic ferrule |
| Connector | 2 x LC/UPC single-mode - male |
| Technology | Duplex fibre optic |
| TAA Compliant | Yes |
| Product Description | Startech loopback adapter - TAA Compliant - blue |
| Type of Fibre Optics | Singlemode |
| Manufacturer Warranty | 2-year warranty |
| Core / Cladding Diameter | 9 / 125 micron |
Connectivity
| Connector | 2 x LC/UPC single-mode - male |
|---|
Dimensions & Weight (Shipping)
| Shipping Width | 9 cm |
|---|---|
| Shipping Depth | 12 cm |
| Shipping Height | 1.2 cm |
| Shipping Weight | 6 g |
Environmental Parameters
| Min Operating Temperature | -40 C |
|---|---|
| Max Operating Temperature | 75 C |
General
| Network Cable Type | Loopback adapter - OS1/OS2 |
|---|---|
| Technology | Duplex fibre optic |
| Type of Fibre Optics | Singlemode |
| Core / Cladding Diameter | 9 / 125 micron |
| Features | < 0.3 dB insertion loss, > 50 dB return loss, 1000 mating cycles, ABS shell, dust cap, ceramic ferrule |
| Width | 1.42 cm |
| Depth | 5.05 cm |
| Height | 0.85 cm |
| Weight | 4 g |
| Colour | Blue |
Manufacturer Warranty
| Service & Support | 2-year warranty |
|---|
Miscellaneous
| Compliant Standards | RoHS, IEC, IEC 61754-20 |
|---|---|
| TAA Compliant | Yes |
Resources
- a4325ec3 c076 428b b375 db4b0e6819d1.xml
- 82770e23 18e5 49df 9d7f 2ce9fffac81c.xml
- 96ba633d 3e89 443b ac32 39c55326049a.xml
Product information source: Dicker Data Partner Portal.
