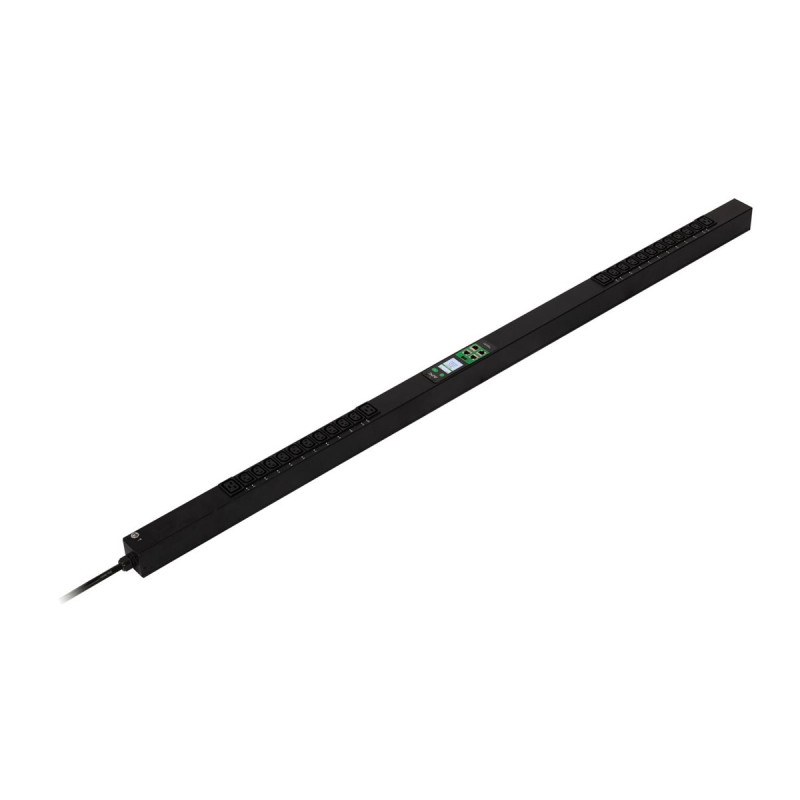

APC EASY PDU SWITCHED ZERO U 32A 230V(20)C13 (4)C19 IEC309
$0.00
Tax included
APC EasyPDU EPDU2132S - Power distribution unit (rack-mountable) - switched - AC 230 V - 1-phase - Ethernet 10/100/1000, serial, USB - input: IEC 60309 2P+E 32A - output connectors: 24 (20 x IEC 60320 C13, 4 x IEC 60320 C19) - 0U - 3 m cord - black
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
APC EasyPDU EPDU2132S - Power distribution unit (rack-mountable) - switched - AC 230 V - 1-phase - Ethernet 10/100/1000, serial, USB - input: IEC 60309 2P+E 32A - output connectors: 24 (20 x IEC 60320 C13, 4 x IEC 60320 C19) - 0U - 3 m cord - black
Specifications
| Colour | Black |
|---|---|
| Weight | 6.65 kg |
| Rack Size | 0U |
| Networking | Ethernet 10/100/1000, serial, USB |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Input Wiring | 1-phase |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V |
| Input Connectors | 1 x power IEC 60309 2P+E 32A |
| Output connectors | 20 x power IEC 60320 C13 - 230 V ? 4 x power IEC 60320 C19 - 230 V |
| Dimensions (WxDxH) | 5.6 cm x 6.2 cm x 165 cm |
| Product Description | APC EasyPDU EPDU2132S - power distribution unit - switched |
| Manufacturer Warranty | 2-year warranty |
| Remote Management Protocol | SNMP 1, CLI, HTTP, HTTPS, SNMP 2, SNMP 3, DHCP, IPv4, IPv6 |
Dimensions & Weight
| Width | 5.6 cm |
|---|---|
| Depth | 6.2 cm |
| Height | 165 cm |
| Weight | 6.65 kg |
Dimensions & Weight (Shipping)
| Shipping Width | 17 cm |
|---|---|
| Shipping Depth | 12.6 cm |
| Shipping Height | 181 cm |
| Shipping Weight | 8.15 kg |
Environmental Parameters
| Min Operating Temperature | -5 C |
|---|---|
| Max Operating Temperature | 50 C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Expansion / Connectivity
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 1 x serial - RJ-45 1 x USB - 4 pin USB Type A 1 x sharing input - RJ-45 1 x sharing output - RJ-45 |
|---|---|
| Expansion Slots | 1 (total) / 0 (free) x Network Interface slot |
General
| Device Type | Power distribution unit - rack-mountable |
|---|---|
| Height (Rack Units) | 0U |
| Cord Length | 3 m |
| Colour | Black |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 2 years |
|---|
Miscellaneous
| Cables Included | Power cable - integrated - 3 m |
|---|---|
| Rack Mounting Kit | Included |
| Features | Vertical orientation, LCD display, Hydraulic-Magnetic breakers, steel enclosure, 2 x 16A single pole magnetic breakers |
| Compliant Standards | UKCA, REACH, EU RoHS, EN55035, EN 55032, EN55024, EMC, EN 62368-1, IEC 62368-1, TUV |
Networking
| Remote Management Interface | Ethernet 10/100/1000, serial, USB |
|---|---|
| Remote Management Protocol | SNMP 1, CLI, HTTP, HTTPS, SNMP 2, SNMP 3, DHCP, IPv4, IPv6 |
Power Device
| Input Voltage | AC 230 V |
|---|---|
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 2P+E 32A |
| Power Output Connectors Details | 20 x power IEC 60320 C13 - 230 V 4 x power IEC 60320 C19 - 230 V |
| Output Voltage | AC 230 V |
| Max Electric Current | 32 A |
| Circuit Protection | Circuit breaker |
